Aqueous Humor Dynamics Part 1: Production Mechanisms, Composition, and Factors Affecting Secretion

The aqueous humor is a clear fluid that fills the anterior and posterior chambers of the eye. It plays a critical role in maintaining the shape of the eye, the intraocular pressure (IOP), nourishing avascular ocular tissues i.e the lens and the cornea and removing metabolic waste.Understanding its production is crucial for diagnosing and managing disorders like glaucoma and ocular hypertension.

Table of Contents

In this first part of our series on aqueous humor dynamics, we’ll explore:

What aqueous humor is
Where and how it’s produced
The three key mechanisms of production
Factors influencing production
Pharmacological modulation of Aqueous Humor production

Where is Aqueous Humor Found?

The aqueous humor occupies two major chambers:

Posterior Chamber – Located behind the iris and in front of the lens.
Anterior Chamber – Located between the iris and the cornea.

👉 Primary production site: Ciliary processes of the ciliary body.

How Is Aqueous Humor Produced?

Aqueous humor is produced in the ciliary processes of the ciliary body by three mechanisms:

1. Ultrafiltration

Location: Fenestrated capillaries in the stroma of the ciliary processes.
Mechanism:
Driven by hydrostatic pressure, small water-soluble molecules and water pass passively from capillaries into the ciliary stroma.
This is a non-energy dependent process.
Contribution: 20% of total aqueous production
💡Clinical relevance: Systemic blood pressure has minimal effect on this due to the small volume filtered.

2. Diffusion

Location: Across cell membranes of the capillaries in the ciliary processes
Mechanism:
Lipid-soluble molecules (like O₂ and CO₂) move passively down their concentration gradient from plasma into ciliary stroma.
Contribution: Also passive, but plays a supportive role (10% of Aqueous Production).
Clinical relevance: Affected by solubility and membrane permeability, not pressure.

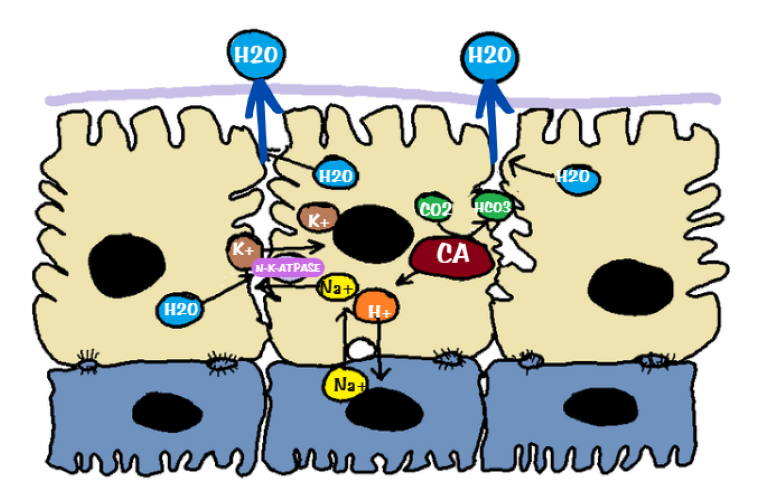

3. Active Secretion

This is the primary and most important mechanism, contributing ~70-80% of aqueous humor.
Location: Across the bilayered ciliary epithelium – consisting of:
Pigmented epithelium (PE) – outer layer, adjacent to stroma
Non-pigmented epithelium (NPE) – inner layer, facing posterior chamber
These two layers are connected by gap junctions, forming a functional syncytium.
Occurs mainly in the NPE, which is mitochondria-rich

Sequence of Events:

🔸 On the Stromal Side (adjacent to PE):

- Sodium-Hydrogen Exchanger : brings Na⁺ into PE in exchange for H⁺
- Chloride-Bicarbonate Exchanger: imports Cl⁻ into PE in exchange for HCO₃⁻
- Na⁺-K⁺-2Cl⁻ Cotransporter : imports Na⁺, K⁺, and 2Cl⁻ into PE cell
These transporters especially the Na⁺-K⁺-2Cl⁻ Cotransporter (even the Na⁺-K ATPase) are regulated by cyclic AMP and are influenced by sympathetic stimulation. Increased Sympathetic activity increases cAMP ,which in turn increases the activity of these transporters.

🔸 In the Pigmented Epithelium (PE):

The above ions enter the pigmented epithelium, aided by carbonic anhydrase, which catalyzes:
CO2+H2O⇌H+ +HCO3−
This provides the H⁺ and HCO₃⁻ needed for the ion exchangers.
Ions then pass from PE to NPE through gap junctions.

🔸 In the Non-Pigmented Epithelium (NPE):

Sodium-Potassium ATPase on the basolateral (posterior chamber-facing) membrane pumps Na⁺ out into the intercellular clefts and K⁺ inside the cells, creating an osmotic gradient.
Chloride follows passively, and water follows via aquaporins (AQP1 and AQP4) down the osmotic gradient.
The aqueous humor (water + solutes) is then secreted into the posterior chamber.

⭐Special Case – Ascorbate Transport:⭐

Vitamin C (ascorbate) is actively transported by SVCT2 (Sodium-dependent Vitamin C Transporter).
As a result, ascorbate concentration in aqueous is 20–50x higher than plasma.
Function: Protects cornea and lens from oxidative damage.

⭐Rate Of Aqueous Production is 2-3 microlitres/min (~3-4ml/day)

Factors Affecting Aqueous Humor Production

1. Age

Declines by:

~2–3.5% per decade (from age 10 to 60)
~1–2% per year (after 60)

Causes Of Decline in aqueous production with age:

Thickening of basement membrane
Decreased organelle density in NPE cells
Accumulation of extracellular matrix

2. Circadian Rhythm

Daytime production: 2.5–3.0 µL/min
Nighttime production: 1.0–1.5 µL/min
~50% reduction at night
Mechanism: Reduced β-adrenergic activity during sleep

3. Intraocular Pressure (IOP)

Generally does not affect aqueous production directly
Exception: In ocular inflammation, shutdown of the ciliary body can lead to hypotony

4. Drugs That Inhibit Aqueous Humor Production

1. Carbonic Anhydrase Inhibitors (CAIs)

Examples: Acetazolamide (oral), Dorzolamide (topical)
Mechanism: Inhibits carbonic anhydrase → ↓ HCO₃⁻ → ↓ ion transport
Effect: Reduces aqueous production by 40–60%

2. Beta-Blockers

Example: Timolol
Mechanism: Blocks β-receptors → ↓ cAMP → ↓ Na⁺/K⁺ ATPase activity
Limitation: Causes tachyphylaxis with chronic use

3. Alpha-2 Agonists

Example: Brimonidine
Mechanism: Mild vasoconstriction early on ↓ aqueous production
Additional benefit: Increases uveoscleral outflow
